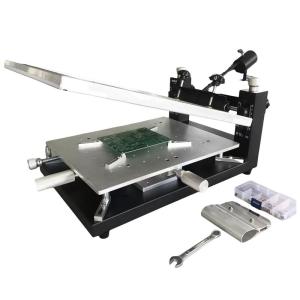

High Precision Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300x400mm Solder Paste Printing
Description:
3040 High-Precision Manual Solder Paste Printer
1. 30° Rotatable Platform:
The worktable supports up to 30° rotation while maintaining consistent positioning accuracy during repeated operations, ideal for double-sided PCB printing.
2. PCB Alignment & Flexibility:
Features fixed beads and posts for quick PCB alignment, ensuring high repeatability (±0.01mm) and adaptability to various board sizes.
3. Adjustable Height Brackets:
Equipped with spiral bolt bars for precise vertical adjustment, enabling control over PCB thickness and solder paste deposition volume.
4. Sturdy Construction:
High-quality aluminum platform with steel-reinforced base enhances durability and stability during printing.
Purcahse from our Online store directly with free shipping (by PayPal):
| Work table size | 300*400mm |
| PCB size | 270*370mm |
| Max net frame size | 370*470mm |
| Stencil printer dimension | 580*320*259mm |
| Screen printing platform height | 180mm |
| PCB board positioning method | Shape or Reference Hole |
| Printing platform height | 220mm |
| repeated accuracy | ±0.01mm |
| Overall Dimensions(L*W*H) | 580*320*259mm |
| Net weight | 13kg |
1.Upper and lower adjusting handle
2.Stencil bracket
3.Embossing star knob
4.Platform
5.PCB fixation unit
6.X-axis adjusting handle
7.Y-axis adjusting handle
8.Swing adjusting handle
9.Support pin
10.Platform support base block
11.PCB position block
Small SMT Production Line:
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Each machine 100% test well before ship out.
